Predictive value of preoperative imaging tumor burden score-based model for microvascular invasion of single hepatocellular carcinoma

doi:10.3877/cma.j.issn.2095-3232.2026.03.012

Abstract

Abstract:

Objective

To evaluate the predictive value of model based on preoperative imaging tumor burden score (ITBS) for microvessel invasion (MVI) of single hepatocellular carcinoma (HCC).

Methods

Clinical data of 213 patients with single HCC who underwent surgical resection in the 900th Hospital from January 2015 to December 2021 were retrospectively analyzed. Among them, 148 patients were male and 65 female, aged (53±12) years. The predictive value of ITBS for MVI was assessed by the receiver operating characteristic (ROC) curve. The threshold value of ITBS was determined. All patients were divided into the high and low ITBS groups. Univariate and multivariate Logistic regression analyses were used to analyze the correlation with MVI. Nomogram model was constructed based on Akachi Information Criterion (AIC). The consistency and predictive ability of this model were validated by the calibration curve and ROC curve. The application value of prediction model in actual clinical decision was evaluated by the decision curve analysis (DCA).

Results

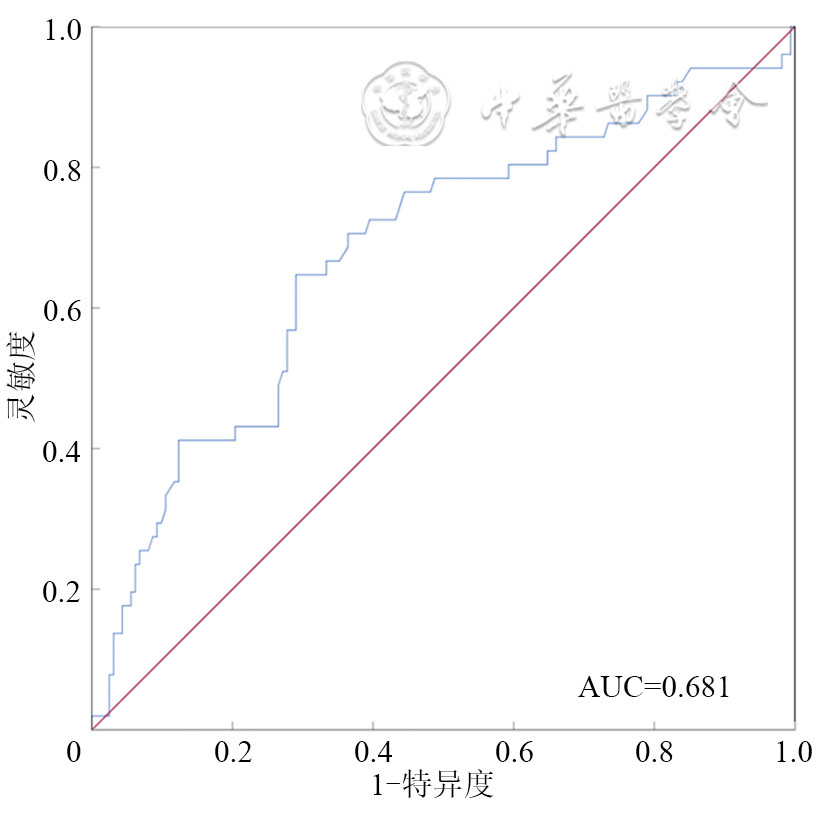

The ITBS value of HCC patients was 1.28-18.03. The area under the ROC curve (AUC) of ITBS for predicting MVI in HCC patients was 0.681 (95%CI: 0.592-0.769), the sensitivity was 0.647, the specificity was 0.710, and the optimal threshold value was 5.9, respectively. According to this threshold value of ITBS, all patients were divided into the low (n=132) and high ITBS groups (n=81). Multivariate Logistic regression analysis showed that male gender, complicated with diabetes mellitus, low ALB and low Child-Pugh score were the risk factors for MVI in HCC patients (OR=2.432, 2.545, 0.919, 5.158; all P<0.05). Based on independent risk factors and ITBS, nomogram model was constructed according to AIC. ROC curve analysis showed that the AUC, sensitivity and specificity of the nomogram model were 0.767, 0.608 and 0.809, indicating high prediction efficiency. The calibration curve demonstrated that the the probability predicted by the nomogram model was consistent with the actual results. External validation also suggested the reliability of this nomogram model. DCA curve showed that the nomogram model can be utilized as a valuable prediction tool for the risk of MVI in patients with single HCC.

Conclusions

ITBS can predict the occurrence of MVI in patients with single HCC. The nomogram model based on gender, diabetes mellitus, ALB, Child-Pugh class and ITBS can reliably and intuitively predict the risk of MVI in patients with single HCC.

Key words: Carcinoma, hepatocellular, Microvascular invasion, Nomogram, Imaging tumour load score

Zhijian Chen, Jianda Yu, Zerun Lin, Honghuan Lin, Changyu Yi, Xiaobin Chi, Lizhi Lyu, Yongbiao Chen. Predictive value of preoperative imaging tumor burden score-based model for microvascular invasion of single hepatocellular carcinoma[J]. Chinese Journal of Hepatic Surgery(Electronic Edition), 2026, 15(03): 379-385.

/ / Recommend

Add to citation manager EndNote|Ris|BibTeX

URL: https://zhgzwkssxdzzz.cma-cmc.com.cn/EN/10.3877/cma.j.issn.2095-3232.2026.03.012

https://zhgzwkssxdzzz.cma-cmc.com.cn/EN/Y2026/V15/I03/379

Figures/Tables 5

项目	低ITBS组	高ITBS组	统计值	P值
性别[例, 男/女]	89/42	59/22	χ²=0.69	0.404
WBC(×10⁹/L, $x ¯$ ±s)	6.3±2.2	6.6±2.0	t=1.06	0.292
淋巴细胞(×10⁹/L, $x ¯$ ±s)	1.8±0.60	1.7±0.6	t=1.38	0.169
RBC(×10¹²/L, $x ¯$ ±s)	4.7±0.5	4.7±0.5	t=0.26	0.792
Hb(g/L, $x ¯$ ±s)	141±17	141±14	t=0.23	0.805
Plt(×10⁹/L, $x ¯$ ±s)	183±74	203±81	t=1.85	0.066
AFP>400 μg/L[例(%)]	34(26)	32(40)	χ²=4.44	0.035
糖尿病[例(%)]	100(76)	64(79)	χ²=0.69	0.404
乙肝[例(%)]	17(46)	14(35)	χ²=2.45	0.117
HBV-DNA>500(IU/ml)	72(55)	53(65)	χ²=2.45	0.117
ALT[U/L, M(Q₁, Q₃)]	35 (26, 44)	35 (24, 55)	Z=1.27	0.206
AST[U/L, M(Q₁, Q₃)]	33(23, 50)	33 (23, 51)	Z=4.92	<0.001
ALB(g/L, $x ¯$ ±s)	43±5	42±5	t=2.23	0.027
TB(μmmol/L, $x ¯$ ±s)	13±9	15±11	t=0.90	0.368
PT(s, $x ¯$ ±s)	11.7±1.0	11.9±1.0	t=1.47	0.143
肿瘤最大径(cm, $x ¯$ ±s)	3.4±1.3	9.1±2.6	t=21.53	<0.001
MVI[例(%)]	18(16)	33(41)	χ²=18.79	<0.001
Child-Pugh分级B级[例(%)]	4(3)	9(11)	χ²=4.40	0.036
肝硬化[例(%)]	21(16)	19(24)	χ²=1.41	0.235

项目	低ITBS组	高ITBS组	统计值	P值
性别[例, 男/女]	89/42	59/22	χ²=0.69	0.404
WBC(×10⁹/L, $x ¯$ ±s)	6.3±2.2	6.6±2.0	t=1.06	0.292
淋巴细胞(×10⁹/L, $x ¯$ ±s)	1.8±0.60	1.7±0.6	t=1.38	0.169
RBC(×10¹²/L, $x ¯$ ±s)	4.7±0.5	4.7±0.5	t=0.26	0.792
Hb(g/L, $x ¯$ ±s)	141±17	141±14	t=0.23	0.805
Plt(×10⁹/L, $x ¯$ ±s)	183±74	203±81	t=1.85	0.066
AFP>400 μg/L[例(%)]	34(26)	32(40)	χ²=4.44	0.035
糖尿病[例(%)]	100(76)	64(79)	χ²=0.69	0.404
乙肝[例(%)]	17(46)	14(35)	χ²=2.45	0.117
HBV-DNA>500(IU/ml)	72(55)	53(65)	χ²=2.45	0.117
ALT[U/L, M(Q₁, Q₃)]	35 (26, 44)	35 (24, 55)	Z=1.27	0.206
AST[U/L, M(Q₁, Q₃)]	33(23, 50)	33 (23, 51)	Z=4.92	<0.001
ALB(g/L, $x ¯$ ±s)	43±5	42±5	t=2.23	0.027
TB(μmmol/L, $x ¯$ ±s)	13±9	15±11	t=0.90	0.368
PT(s, $x ¯$ ±s)	11.7±1.0	11.9±1.0	t=1.47	0.143
肿瘤最大径(cm, $x ¯$ ±s)	3.4±1.3	9.1±2.6	t=21.53	<0.001
MVI[例(%)]	18(16)	33(41)	χ²=18.79	<0.001
Child-Pugh分级B级[例(%)]	4(3)	9(11)	χ²=4.40	0.036
肝硬化[例(%)]	21(16)	19(24)	χ²=1.41	0.235

因素	单因素分析		多因素分析
因素	OR(95%CI)	P值	OR(95%CI)	P值
男性	2.465(1.120~5.429)	0.025	2.432(1.030~5.742)	0.043
糖尿病	2.031(1.010~4.086)	0.047	2.545(1.130~5.732)	0.024
HBV-DNA>500(IU/ml)	1.969(1.001~3.875)	0.049	1.512(0.694~3.295)	0.298
ALB(g/L)	0.909(0.847~0.976)	0.009	0.919(0.847~0.996)	0.039
肿瘤最大径(cm)	1.192(1.085~1.309)	<0.001	1.052(0.888~1.245)	0.558
Child-Pugh分级B级	5.842(1.818~18.769)	0.003	5.158(1.408~18.891)	0.013
ITBS>5.9	4.354(2.237~8.475)	<0.001	2.764(0.819~9.335)	0.102

References 24

[1]	中国抗癌协会肝癌专业委员会, 中华医学会肝病学分会肝癌学组, 中国抗癌协会病理专业委员会, 等. 原发性肝癌规范化病理诊断指南(2015年版)[J]. 中华肝脏病杂志, 2015, 23(5): 321-327. DOI: 10.3760/cma.j.issn.1007-3418.2015.05.001.
[2]	Wang H, Qian YW, Wu MC, et al. Liver resection is justified in patients with BCLC intermediate stage hepatocellular carcinoma without microvascular invasion[J]. J Gastrointest Surg, 2020, 24(12): 2737-2747. DOI: 10.1007/s11605-019-04251-8.
[3]	Wang L, Wang W, Yao X, et al. Postoperative adjuvant radiotherapy is associated with improved survival in hepatocellular carcinoma with microvascular invasion[J]. Oncotarget, 2017, 8(45): 79971-79981. DOI: 10.18632/oncotarget.20402.
[4]	中华人民共和国国家卫生健康委员会医政医管局. 原发性肝癌诊疗规范(2019年版)[J]. 中华肝脏病杂志, 2020, 28(2): 112-128. DOI: 10.3760/cma.j.issn.1007-3418.2020.02.004.
[5]	Sasaki K, Morioka D, Conci S, et al. The tumor burden score: a new “metro-ticket” prognostic tool for colorectal liver metastases based on tumor size and number of tumors[J]. Ann Surg, 2018, 267(1): 132-141. DOI: 10.1097/sla.0000000000002064.
[6]	俞建达, 陈志坚, 林泽润, 等. 肿瘤负荷评分在预测肝癌根治性切除术后复发中的应用[J]. 中华肝胆外科杂志, 2024, 30(10): 727-732. DOI: 10.3760/cma.j.cn113884-20240401-00092.
[7]	Sasaki K, Margonis GA, Andreatos N, et al. The prognostic utility of the “Tumor Burden Score” based on preoperative radiographic features of colorectal liver metastases[J]. J Surg Oncol, 2017, 116(4): 515-523. DOI: 10.1002/jso.24678.
[8]	国家卫生健康委办公厅. 原发性肝癌诊疗指南(2022年版)[J]. 中华普通外科学文献(电子版), 2022, 16(2): 81-96. DOI: 10.3877/cma.j.issn.1674-0793.2022.02.001.
[9]	Zheng RS, Chen R, Han BF, et al. Cancer incidence and mortality in China, 2022[J]. Zhonghua Zhong Liu Za Zhi, 2024, 46(3): 221-231. DOI: 10.3760/cma.j.cn112152-20240119-00035.
[10]	Yoh T, Seo S, Taura K, et al. Surgery for recurrent hepatocellular carcinoma: achieving long-term survival[J]. Ann Surg, 2021, 273(4): 792-799. DOI: 10.1097/sla.0000000000003358.
[11]	Shindoh J, Kobayashi Y, Kawamura Y, et al. Microvascular invasion and a size cutoff value of 2 cm predict long-term oncological outcome in multiple hepatocellular carcinoma: reappraisal of the American Joint Committee on Cancer staging system and validation using the surveillance, epidemiology, and end-results database[J]. Liver Cancer, 2020, 9(2): 156-166. DOI: 10.1159/000504193.
[12]	Zhong XP, Zhang YF, Mei J, et al. Anatomical versus non-anatomical resection for hepatocellular carcinoma with microscope vascular invasion: a propensity score matching analysis[J]. J Cancer, 2019, 10(17): 3950-3957. DOI: 10.7150/jca.32592.
[13]	王礼光, 严庆, 廖珊, 等. 微血管侵犯及手术切缘对肝细胞癌患者术后生存预后的影响[J/OL]. 中华肝脏外科手术学电子杂志, 2024, 13(2): 151-157. DOI: 10.3877/cma.j.issn.2095-3232.2024.02.006.
[14]	胡宁宁, 赵延荣, 王栋, 等. FMNL3与肝细胞癌肝移植受者预后的相关性研究[J/OL]. 中华移植杂志(电子版), 2024, 18(5): 283-288. DOI: 10.3877/cma.j.issn.1674-3903.2024.05.005.
[15]	Okamura Y, Sugiura T, Ito T, et al. Anatomical resection is useful for the treatment of primary solitary hepatocellular carcinoma with predicted microscopic vessel invasion and/or intrahepatic metastasis[J]. Surg Today, 2021, 51(9): 1429-1439. DOI: 10.1007/s00595-021-02237-1.
[16]	聂彬, 赵铁军, 张胜龙. 肝细胞癌伴微血管侵犯不同切缘方案下根治术的预后分析[J]. 肝脏, 2023, 28(8): 921-923, 964. DOI: 10.14000/j.cnki.issn.1008-1704.2023.08.019.
[17]	Elfadaly AN, Tsilimigras DI, Hyer JM, et al. Impact of tumor burden score on conditional survival after curative-intent resection for hepatocellular carcinoma: a multi-institutional analysis[J]. World J Surg, 2021, 45(11): 3438-3448. DOI: 10.1007/s00268-021-06265-3.
[18]	Tsilimigras DI, Mehta R, Paredes AZ, et al. Overall tumor burden dictates outcomes for patients undergoing resection of multinodular hepatocellular carcinoma beyond the Milan criteria[J]. Ann Surg, 2020, 272(4): 574-581. DOI: 10.1097/sla.0000000000004346.
[19]	Moris D, Shaw BI, McElroy L, et al. Using hepatocellular carcinoma tumor burden score to stratify prognosis after liver transplantation[J]. Cancers, 2020, 12(11): 3372. DOI: 10.3390/cancers12113372.
[20]	Naugler WE, Sakurai T, Kim S, et al. Gender disparity in liver cancer due to sex differences in MyD88-dependent IL-6 production[J]. Science, 2007, 317(5834): 121-124. DOI: 10.1126/science.1140485.
[21]	Lee JY, Sohn KH, Rhee SH, et al. Saturated fatty acids, but not unsaturated fatty acids, induce the expression of cyclooxygenase-2 mediated through toll-like receptor 4[J]. J Biol Chem, 2001, 276(20): 16683-16689. DOI: 10.1074/jbc.m011695200.
[22]	杨亚, 张宝华, 龚建平. 影响肝癌与糖尿病发病相关性的基因及其分子机制[J]. 中华肝脏病杂志, 2018, 26(9): 718-720. DOI: 10.3760/cma.j.issn.1007-3418.2018.09.020.
[23]	Wang L, Chen B, Li Z, et al. Optimal postoperative adjuvant treatment strategy for HBV-related hepatocellular carcinoma with microvascular invasion: a propensity score analysis[J]. OncoTargets Ther, 2019, 12: 1237-1247. DOI: 10.2147/ott.s179247.
[24]	Wang L, Li Q, Zhang J, et al. A novel prognostic scoring model based on albumin and γ-glutamyltransferase for hepatocellular carcinoma prognosis[J]. Cancer Manag Res, 2019, 11: 10685-10694. DOI: 10.2147/cmar.s232073.
